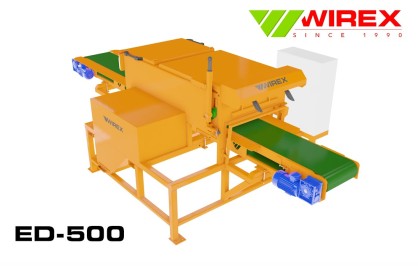

EDGER ED-500

This edger is designed so it could be fitted in broadly defined production scope. It allows not only to cut wide elements – up to 650 mm, but also very short planks or off-cuts that are 800 mm long. Such flexibility enables to maximize output and reduce waste amount as well. Edger’s construction allows for smooth production profile change-over and built-in controller for fast blades slide in/out (automatic dimension setting).

Technical data

Dimensions
  • length 4400 mm
  • width 2000 mm
  • height 1650 mm
  • feeding conveyor height 880 mm
Weight 1830 kg
Dimensions of infeed workpiece
  • width up to 650 mm
  • min. length 800 mm
  • thickness from 20 up to 140 mm
Main motors power 2 x 8,1 kW (maximally 2 blades)
Power supply 400 V (3 phase)
Cutting heads slide in/out
  • electrical via controller
Conveyor
  • smooth, inverter controlled,
  • speed rate 10 - 25 m/min.
Main belt conveyor width
  • infeed, belt conveyor dimension 400 x 2000 mm
  • output, belt conveyor dimension 400 x 2000 mm,
Workpiece down-holder
  • on infeed spring - 1 unit
  • on output spring - 1 unit
Shaft
  • diameter 40 mm
  • possible slide in/out of shafts with max. slide in value of 80 mm
Circular blade
  • 350 mm ÷ 450 mm
  • applicable blades quantity 2 - 6
Capacity per hour  up to 3 m3

Optional equipment

  • motors shift to 12 kW (max 6 blades)
  • laser
  • electrical rotary down-holder
