CZP-4/400 chain conveyor

Name: CZP-4/400 chain conveyor
Brand: Wirex.pl
SKU: 20
Availability: InStock

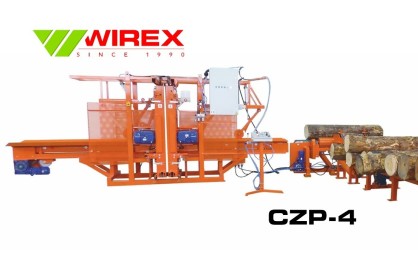

Vertical quadruple band sawmill CZP-4/A with chain conveyor may process thin round wood with diameter up to 400 mm. As a result we obtain either one flitch with two planks and offcuts or three flitches at once.

Technical data

Dimensions	length 5300 mm width 2800 mm height 2200 mm chain conveyor height 860 mm
Weight	2250 kg
Dimensions of infeed workpiece	diameter up to 400 mm length from 800 to 3000 mm
Dimensions of obtained flitch	min. 65 mm
Main motors power	4 x 6 kW
Power supply	400 V (3 phase)
Cutting heads slide in/out	manual
Conveyor	smooth, inverter controlled speed rate 4-3 m/min
Band wheels diameter	600 mm
Band saw specification	length 4000 mm width 30 ÷ 42 mm thickness up to 1,1 mm
Workpiece down-holder	on infeed pneumatic (1 unit) on output plate (1 unit)
Controls	suspended rotary control panel
Capacity per hour	up to 4,5 m³
